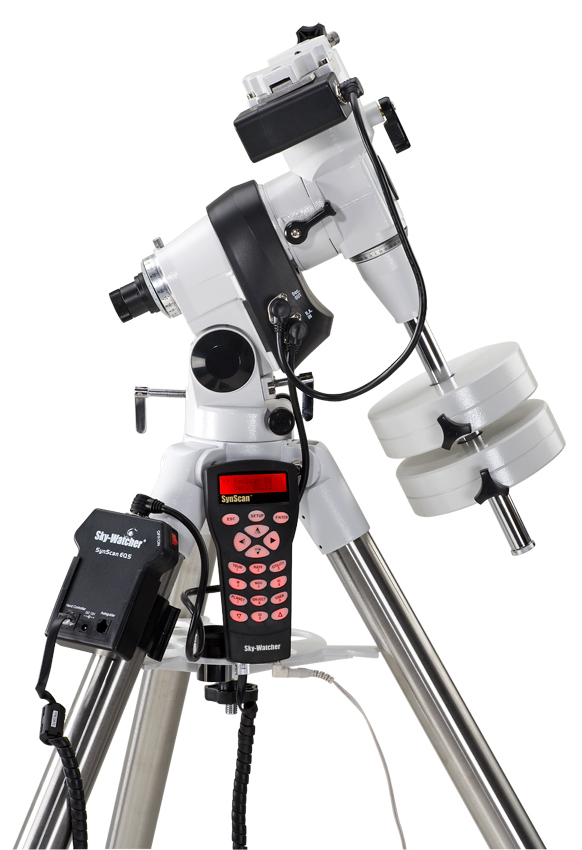

Mount SkyWatcher EQ5 PRO SYNSCAN GoTo

Price: 849.00 EUR / 2 931.43 Lt
779.00 EUR / 2 689.73 Lt.


Order




Quantity



Equatorial mounts usually come as German equatorial or fork mounts. They both use a wedge set at an angle equal to the observer s latitude, in order to point to the celestial pole. German equatorial mounts counter the weight of the telescope with adjustable weights on a rod on the opposite side of the polar axis. Movement around this axis is called right ascension or R.A. while around the other axis is called declination or DEC.

The EQ5 provides the precision and stability needed for serious observing. With single or double axis motor drive attached, it becomes the perfect instrument for deep-sky photography. Standard features of the EQ5 include a built-in holder for polar scope, a latitude adjuster with micrometer scale, an azimuth polar-alignment adjuster, aluminum setting circles, large manual slow-motion tracking controls, and a bubble level.
Hardware Features:

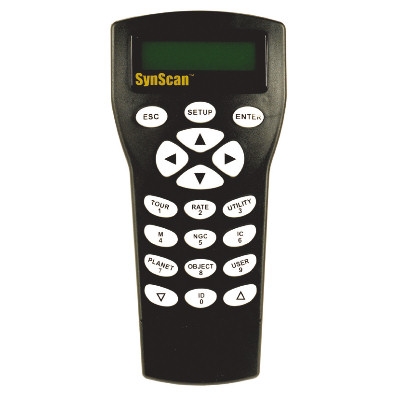

  • SynScan TM V.3 Firmware Updateable Hand Control
    New features include ongoing firmware updateability via the internet, Pointing Accuracy Enhancement (PAE), and capability to store star alignment data. Also can accept new GPS mouse attachment.
  • High precision stepper motors
  • Motor Controller: Microstep driving with auto-power saving feature
  • Resolution: 0.288 arc second
  • Slew Rate: 0.5x, 1x, 8x, 16x, 32x, 64x, 400x, 500x, 600x, 800x
  • Tracking Rate: Sidereal, Lunar, Solar
  • Tracking Mode: R.A. tracking
  • ST-4 type Autoguider Interface: Support 0.25x, 0.5x, 0.75x 1x guiding rate
  • Maximum Payload Capacity: Approx 9kg
  • Power requirement: 11 to 15 V DC 2 Amp (Tip positive) (Power supply not included)
  • Software Features:
  • Alignment Method: One-Star Alignment, Two-Star Alignment, Three-Star Alignment
  • Pointing Accuracy: Up to 1 arc min
  • Object Catalogues: Messier, IC, NGC, Caldwell
  • 42,900+ Object Database: Including Planets, Named Stars, Double Stars, Variable Stars & User-Defined Objects
  • Backlash compensation
  • Periodic Error Correction
  • Premium PC Interface: ASCOM compatible, Nexstar-5i compatible protocol and command set
  • User-tunable LCD contrast, LED backlight and buzzer volume
